Required Hardware
- (1x) #005: Lock Nut (M5)
- (2x) #014: Screw (M4x12)
- (1x) #018: Bolt (M5x15)
Arms/Ribs, Misc Parts

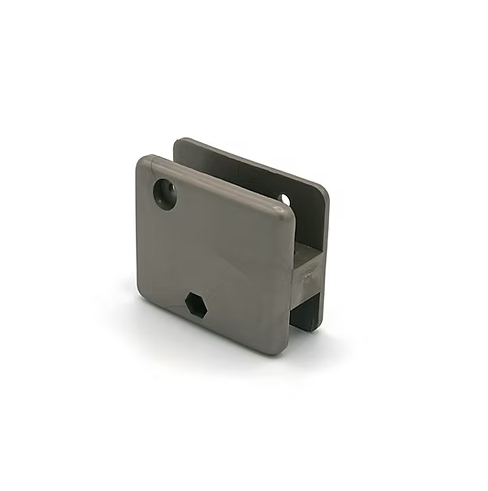

013 | Rib Connector
$12.00
HARDWARE NOT INCLUDED (your hardware can be reused)
Required hardware:
- (1x) #005: Lock Nut (M5)
- (2x) #014: Screw (M4x12)
- (1x) #018: Bolt (M5x15)
| Weight | .4 lbs |
|---|
